Aquatower 3000 Shower System
Product Number
27203000
EAN
4005176198373
Colour
chrome
This product will be discontinued soon
- corner mounting
- profile:
- eloxal aluminium profile
- thermostat covers
- head shower and profiled cap made of plastic
- showers:
- 1 head shower Relexa Exquisit (28 270)
- 4 adjustable side showers with adjustable spray directions and pre-adjustable flow rates
- 1 hand shower Relexa plus Top 4 (28 178)
- all showers are equipped with SpeedClean
- shower hose Relexaflex 1500 mm 1/2" x 1/2" (28 151)
- 1 wall hand shower holder (28 622)
- fittings:
- pre-assembled installation unit
- 1 thermostat with increased flow rate
- 1 Aquadimmer 1/2" to select hand or head shower
- 1 shut-off valve
- with high output for the use of the side showers
- colour:
- Aluminium profile silver eloxal
- covers - silver metallic
- fittings, showers and wall shower holder chrome
- fittings and showers chrome/gold at IG
- not suitable for instantaneous heater
- GROHE Long-Life finish
CAD Data

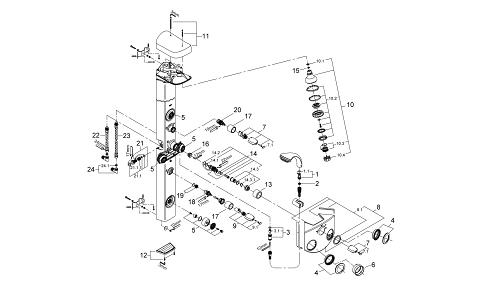

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | Coupling piece | 28635XX0 |
| 1.1 | O-ring ø11 x ø2 | 0122400M |
| 3 | Connection nipple | 45315000 |
| 3.1 | Non-return valve | 08565000 |
| 4 | Escutcheon | 09532000 |
| 5 | Spray faceplate | 45661XX0 |
| 6 | Installation tool | 09813000 |
| 7 | Handle | 47542IP0 |
| 7.1 | Cap | 02490P0M |
| 8 | Cap | 07320F00 |
| 8.1 | Repl. kit f. seal | 45380000 |
| 9 | Handle for shut-off valve with economy device | 47442IP0 |
| 9.1 | Cap | 02490P0M |
| 10 | Head shower | 07785000 |
| 10.1 | Fibre seal dia. 12x2 mm | 0138900M |
| 10.2 | Spray face | 45669000 |
| 10.3 | Replacement pulsator element | 45656XX0 |
| 10.4 |
Disassembling key (for Relexa Plus, Relexa Cosmopolitan face plate) |
45654000 |
| 11 | Cap | 45307F00 |
| 12 | Cap | 45334F00 |
| 13 | Sleeve | 04952000 |
| 14 | Thermoelement 3/4" | 47220000 |
| 14.1 | O-ring ø26 x ø2 | 0120600M |
| 14.2 | O-ring, ø32 x ø2.5 | 0268000M |
| 14.3 | Stop ring + regulating nut | 47300000 |
| 14.3.1 | Fixing clamp | 0574400M |
| 15 | Dirt strainer | 0700200M |
| 16 | Seat for thermostat | 47465000 |
| 17 | Sleeve | 47525000 |
| 18 | Ceramic headpart 3/4", 180° | 45885000 |
| 19 | Seat 3/4" | 45052000 |
| 20 | Aquadimmer | 47364000 |
| 21 | Non-return valve 1/2" | 1411600M |
| 21.1 | Repl. kit f. seal | 47303000 |
| 21.1.1 | Dirt strainer | 0299000M |
| 23 | Connection hose | 07238000 |
| 24 | Elbow union | 07221000 |
| 24.1 | Fibre seal dia. 12x2 mm | 0138900M |
